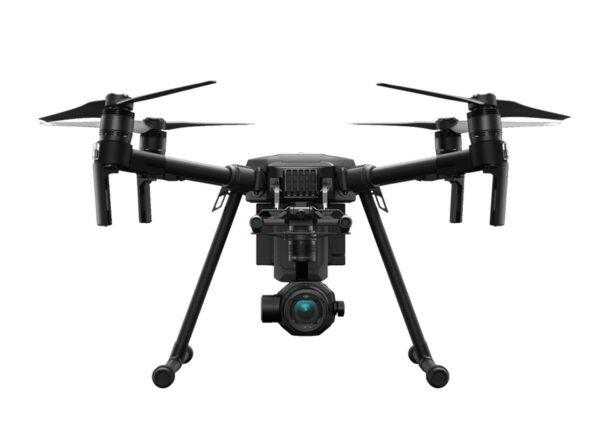

MATRICE 200

MATRICE 200

Category:

Description

The ultimate platform for aerial productivity combines a rugged design and simple configurability to work as a solution for a variety of industrial applications. Improvements to the M200 Series V2 enhance intelligent control systems, flight performance, and add flight safety and data security features.

Aircraft

Dimensions Unfolded, propellers and landing gears included, 883×886×398 mm
Folded, propellers and landing gears excluded, 722×247×242 mm
Diagonal Wheelbase 643 mm
Weight Approx. 4.69 kg (with two TB55 batteries)
Max Takeoff Weight 6.14 kg
Max Payload 1.45 kg
Operating Frequency 2.4000-2.4835 GHz; 5.725-5.850 GHz
EIRP 2.4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC)
5.8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)
Hovering Accuracy (P-mode with GPS) Vertical:±1.64 feet (±0.5 m) or ±0.33 feet
(±0.1 m, Downward Vision System enabled)
Horizontal:±4.92 feet (±1.5 m) or ±0.98 feet (±0.3 m, Downward Vision System enabled)
Max Angular Velocity Pitch: 300°/s, Yaw: 120°/s
Max Pitch Angle S-mode: 35°;
P-mode: 30° (Forward Vision System enabled: 25°);
A-mode: 30°
Max Ascent Speed 16.4 ft/s (5 m/s)
Max Descent Speed (vertical) 9.8 ft/s (3 m/s)
Max Speed S-mode/A-mode 81 kph (50.3 mph);
P-mode: 61.2 kph (38 mph)
Max Service Ceiling Above Sea Level 9842 feet (3000 m, with 1760S propellers)
Max Wind Resistance 39.4 ft/s (12 m/s)
Max Flight Time (with two TB55 batteries) 38 min (no payload),
24 min (takeoff weight: 6.14 kg)
Supported DJI Gimbals Zenmuse X4S/X5S/X7/XT/XT2/Z30
Supported Gimbal Mounting Single Gimbal, Downward
Ingress Protection Rating IP43
GNSS GPS+GLONASS
Operating Temperature -4° to 122° F (-20° to 50° C)
